Onyx Healthcare

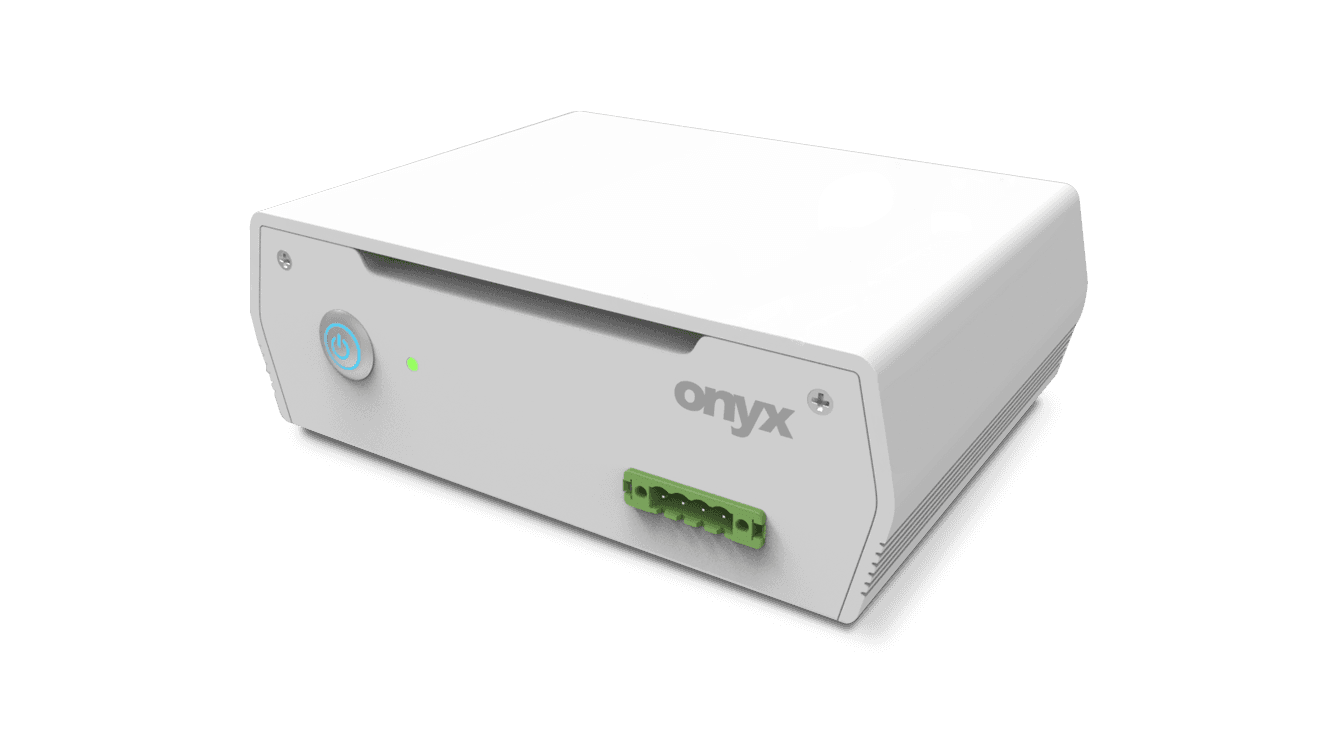

Ultra Slim Medical PC With Intel Alder Lake-N

Name: Micromax Pty Ltd
Address: 5 Orangegrove Avenue, Unanderra, NSW, 2526, AU
Telephone: 1300 760 699

Model: MEDPC-3300Medical Computing

Key Features

MAIN SPECIFICATION
Processor	Intel® Alder Lake-N series i3-N305/N97
System Memory	DDR5 up to 32G
Graphics	Intel® UHD Graphic
Storage	m.2 SSD up to 1TB
Wireless Communication	WiFi6E+BT5.3 (optional)
Speaker	2x 3W (optional)
Trusted Platform Module	TPM 2.0
OS Support	Microsoft® Windows 11 (64bit) Ubuntu 24.04 LTS IGEL 11/12 (thin client solution)
I/O

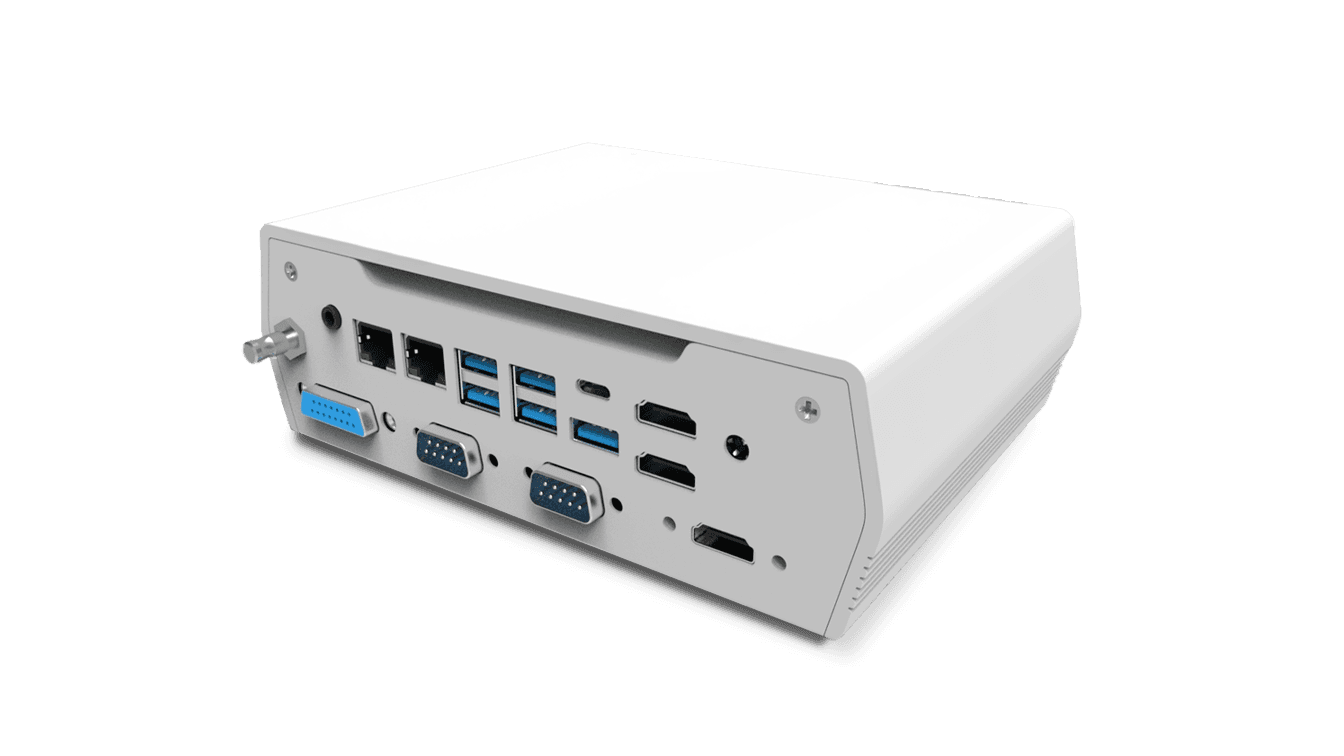

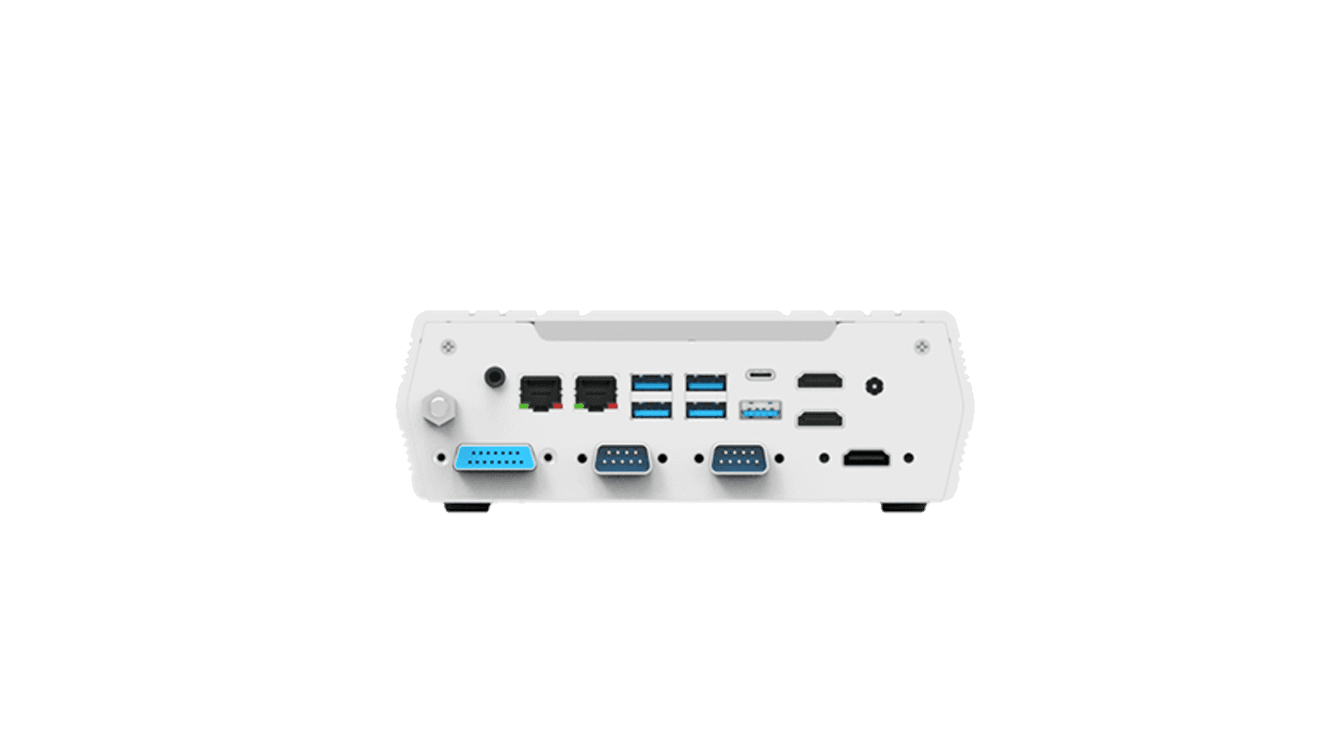

Rear IO	1x 12DC-in power Jack (DCIN1) 1x USB3.2 (Gen.2) Type-A port 1x USB3.2 (Gen.2) Type-C port 4x USB 2.0 port 2x HDMI 2.0b 2x 2.5Gbps RJ-45 LAN port 1x Audio Line-out/MIC port 1x ground pin 1x k-slot 1x Digital IO (optional) 2x COM (optional) 1x capture port – HDMI (optional) –work with SATAIII only
Front IO	1x power key with LED 1x external 4pin power switch (optional) 1x storage LED indicato
MECHANICAL AND ENVIRONMENTAL
Operating Temperature	0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C(-4°F ~ 140°F)
Dimension	180 x 133 x 60 (mm)
Net Weight	1.2kg
Package Size	305 x 225 x 230 (mm)
Gross Weight	2.4kg (5.28lb)
Certifications	CE: EN 60601-1-2: 2015 + A1: 2021 ( V4.1) EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2)
