Onyx Healthcare

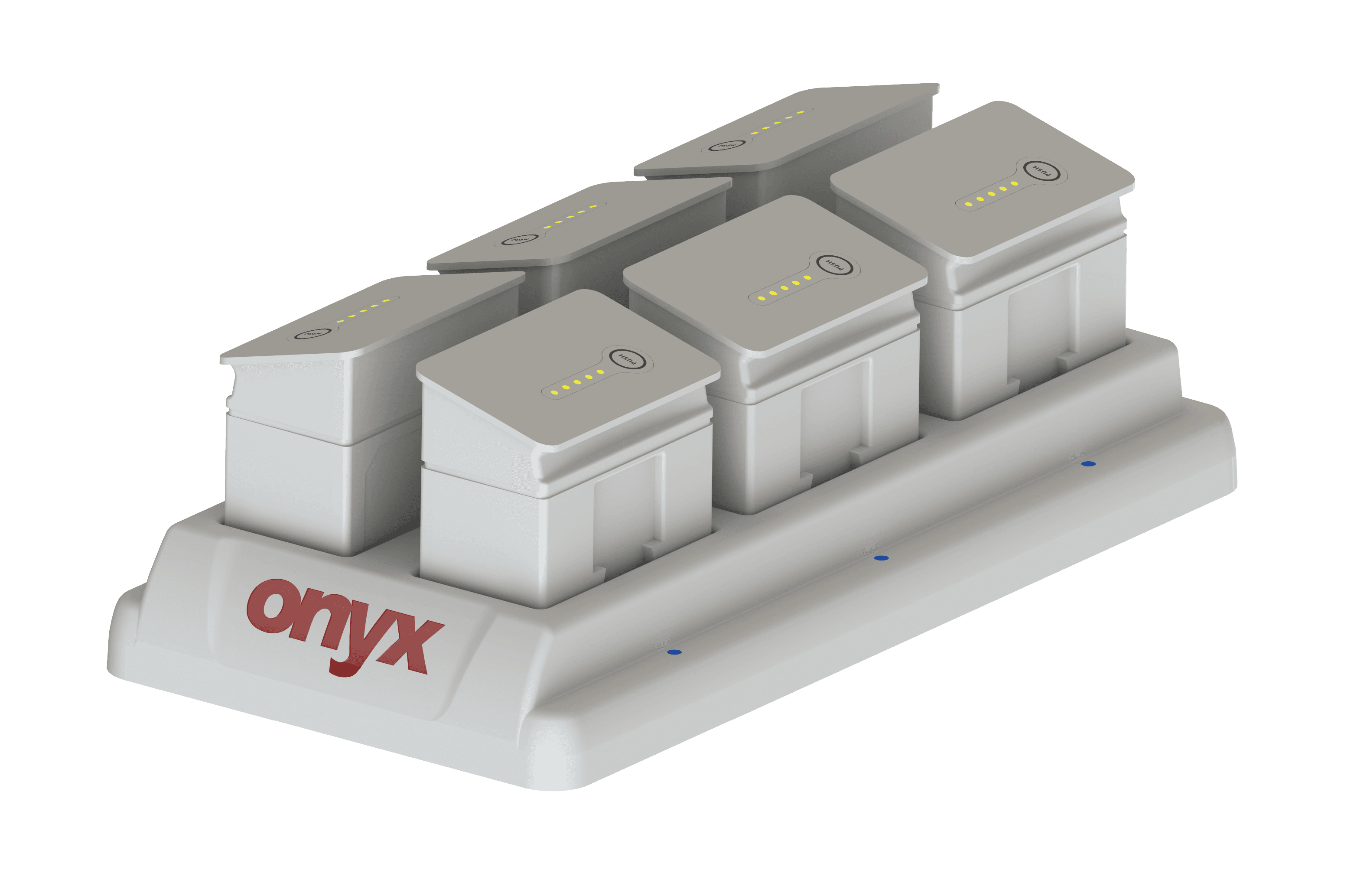

6 -Slot Battery Charger

Name: Micromax Pty Ltd
Address: 5 Orangegrove Avenue, Unanderra, NSW, 2526, AU
Telephone: 1300 760 699

Model: OPM-P01CMedical Computing

Key Features

Mechanical and Environmental
Battery Charge Time	3hrs for standard battery; 3.5hrs for XL battery
Input Power	24V Medical adaptor
Protection	Supports protection from over-voltage (input), over- current (input and output), short circuit, over-charge.
IO interface	Mini-din 4pin x1; USB Type A x1 (Power output only); USB micro-B x1(Data transport only); DC-in
Certification	CE: EN 60601-1-2: 2015 + A1: 2021 ( V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2)
Color	White
Dimension	191(L) x 64(W) x 117(H) mm
Net Weight	0.67kg (1.47 lbs)
Packing Size	390(L) x 290(W) x 110(H) mm
Gross Weight	2kg (4.41 lbs)
Operating Temperature	0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C(-4°F ~ 140°F)

Main Specifications
Battery Charge Time	3.5 hrs for 85%, 4 hrs for 100%
Input Power	24V adaptor
Protection	Supports protection from over-voltage (input), over- current (input and output), short circuit, over-charge.

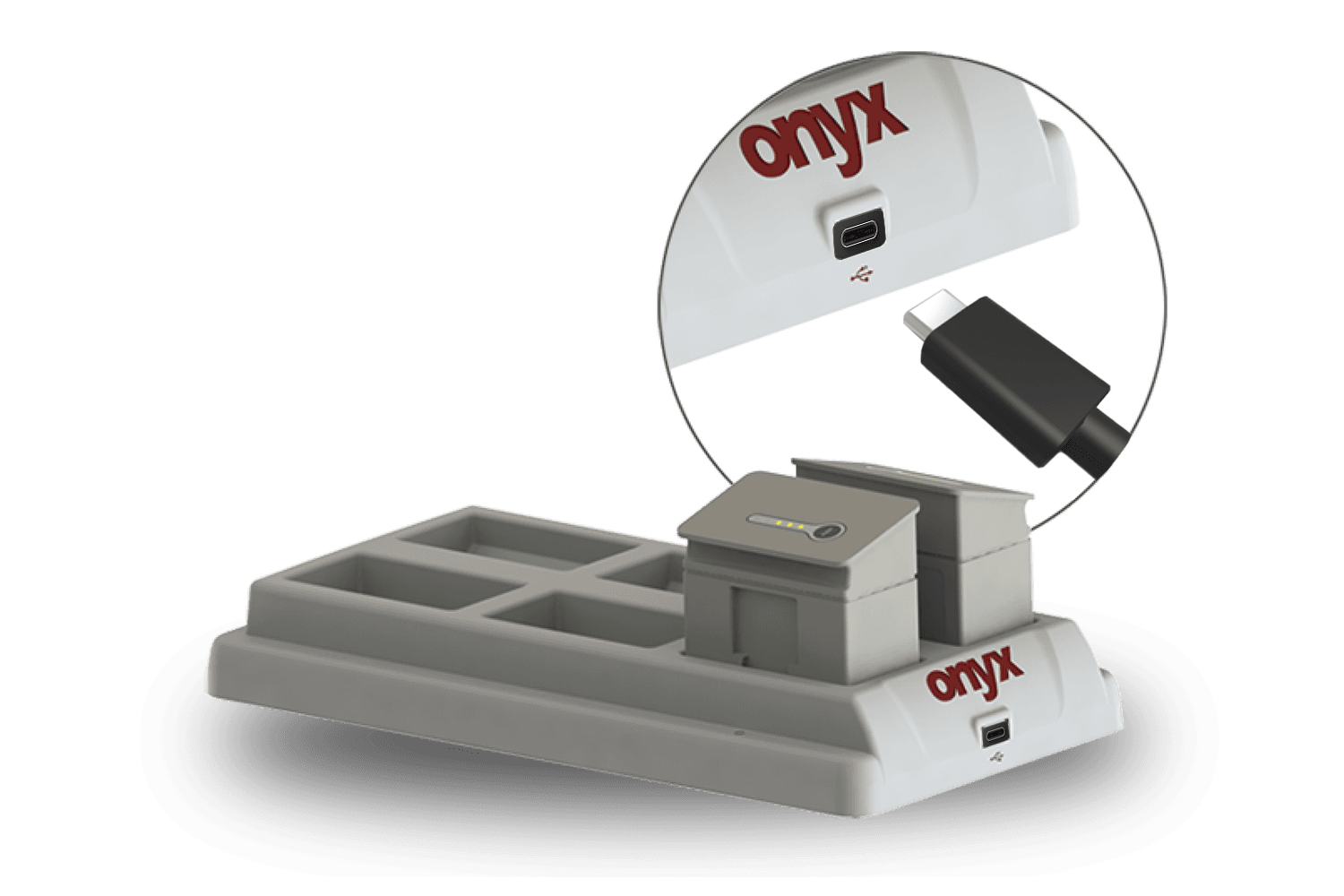

IO interface	USB Type C x 1(Data transport only), DC-in x 1
Certification	CE, FCC
Mechanical and Environmental
Color	White
Dimension	304(L) x 154(W) x 41(H) mm
Net Weight	1.16kg (2.56 lbs
Packing Size	470(L) x 380(W) x 100(H) mm
Gross Weight	3kg (6.61 lbs
Operating Temperature	0°C ~ 40°C(32°F ~ 104°F)
Storage Temperature	-20°C ~ 60°C(-4°F ~ 140°F)
