| System Core | |
|---|---|
| Processor | Supporting Intel® Core™ processor (Series 2) with P-cores (LGA1700 socket, 65W/ 45W TDP) - Intel® Core™ 9 273PE/ 273PTE - Intel® Core™ 7 253PE/ 253PTE - Intel® Core™ 5 223PE/ 223PTE Supporting Intel® Core™ processor (Series 2) (LGA1700 socket, 65W/ 45W TDP) - Intel® Core™ 7 251E/ 251TE - Intel® Core™ 5 221E/ 221TE - Intel® Core™ 3 201E/ 201TE Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) - Intel® Core™ i9-14900/ i9-14900T - Intel® Core™ i7-14700/ i7-14700T - Intel® Core™ i5-14500/ i5-14400/ i5-14500T - Intel® Core™ i3-14100/ i3-14100T Supporting Intel® 13th-Gen Core™ CPU[1] (LGA1700 socket, 65W/ 35W TDP) - Intel® Core™ i9-13900E/ i9-13900TE - Intel® Core™ i7-13700E/ i7-13700TE - Intel® Core™ i5-13500E/ i5-13400E/i5-13500TE - Intel® Core™ i3-13100E/ i3-13100TE |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU) |
| Memory | Up to 128GB DDR5 4800 SDRAM (two SODIMM slots) |
| AMT | Supports Intel vPro/ AMT 16.0 |
| TPM | Supports dTPM 2.0 |
| I/O Interface | |

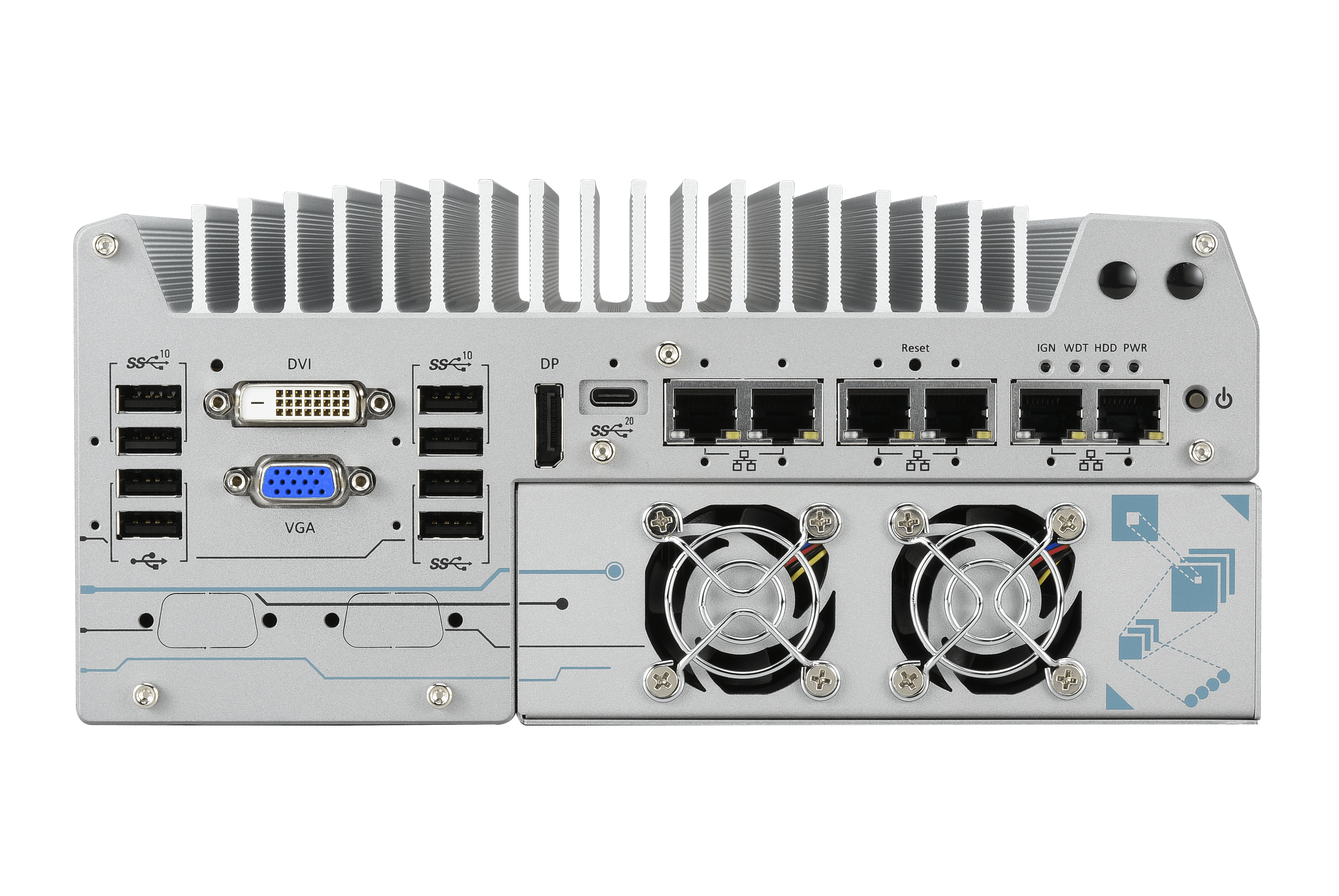

| Ethernet | 5x 2.5G Ethernet by I226-IT/ I225-IT and 1x Gigabit Ethernet by I219-LM with screw-lock |
| PoE+ | Optional IEEE 802.3at PoE+ PSE for Port 3 to Port 6. 100W total power budget |
| USB 3.2 | 1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors 2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors |
| USB 2.0 | 2x USB 2.0 ports |
| Video Port (Integrated Graphics) | 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |

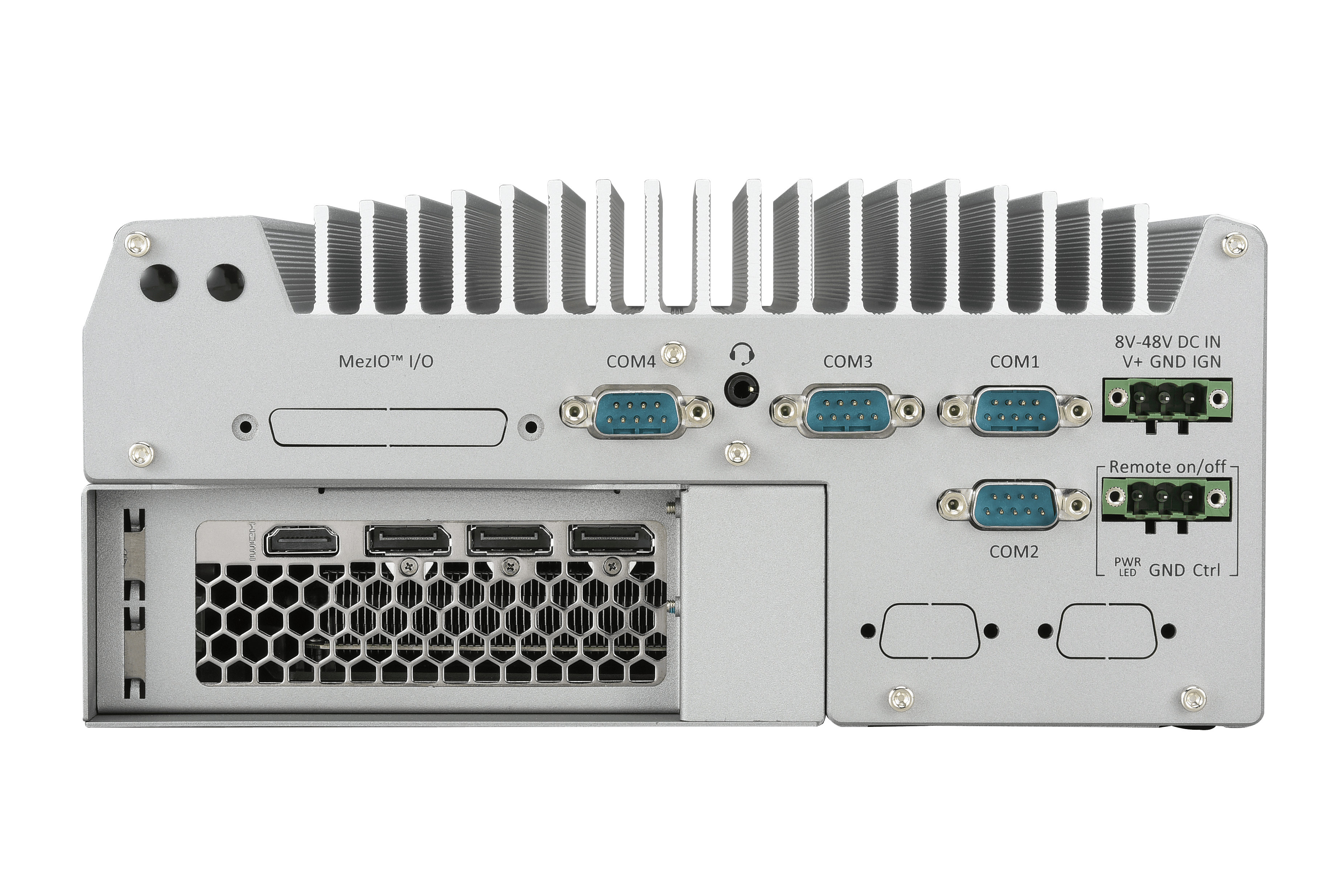

| Serial Port | 2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2) 2x RS-232 ports (COM3/COM4) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Storage Interface | |
| SATA HDD | 2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| Expansion Bus | |
| Mini PCI Express | 1x full-size mini PCI Express socket |
| PCI Express | 1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette for installing an NVIDIA® graphics card up to 150W TDP (Max. graphics card dimension is 178 mm(L) x 117 mm(W), dual slot allocation) |
| M.2 | 1x M.2 3042/3052 B key socket with SIM slot for M.2 4G/ 5G module |
| Expandable I/O | 1x MezIO® expansion port for Neousys MezIO® modules |
| Power Supply | |
| DC Input | 1x 3-pin pluggable terminal block for 8 to 48V DC input |
| Remote Ctrl. & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical | |
| Dimension | 240 mm (W) x 225 mm (D) x 110.5 mm (H) |
| Weight | 3.89 kg |
| Mounting | Wall-mount (standard) or damping bracket (optional) |
| Environmental | |
| Operating Temperature | With 35W/45W CPU and 150W GPU -25°C to 60°C[3][4] With 65W CPU and 150W GPU -25°C to 60°C[3][4] (configured as 35W TDP) -25°C to 50°C[3][4] (configured as 65W TDP) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 (with optional damping bracket) |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II (with optional damping bracket) |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
[1] A BIOS update may be required for the system to recognize 14th/13th-Gen processors. Please contact Neousys Technology for more information.
[2] The system is designed to tolerant 8V to 48V voltage fluctuation. The minimal nominal voltage is required with different system configuration. For system with 35W CPU and 150W GPU, 12V or above nominal DC voltage is recommended. For a system with a 65W CPU and 150W GPU, with or without additional PoE+ PD and/or high-watt PCIe cards, a nominal DC voltage of 24V or above is recommended. Alternatively, users may select an appropriate DC input voltage by considering both the 16A current limitation of the DC input connector and the total system power load.
[3] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
[4] For CPU operating at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to allow higher operating temperature.
