Processor

Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)[1][2]
- Intel® Core™ i9-14900/ i9-14900T
- Intel® Core™ i7-14700/ i7-14700T
- Intel® Core™ i5-14500/ i5-14400/ i5-14500T
- Intel® Core™ i3-14100/ i3-14100T
Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)[1][2]
- Intel® Core™ i9-13900E/ i9-13900TE
- Intel® Core™ i7-13700E/ i7-13700TE
- Intel® Core™ i5-13500E/ i5-13400E/
i5-13500TE
- Intel® Core™ i3-13100E/ i3-13100TE
Supporting Intel® 12th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)
- Intel® Core™ i9-12900E/ i9-12900TE
- Intel® Core™ i7-12700E/ i7-12700TE
- Intel® Core™ i5-12500E/ i5-12500TE
- Intel® Core™ i3-12100E/ i3-12100TE
- Intel® Pentium® G7400E/ G7400TE
- Intel® Celeron® G6900E/ G6900TE

Graphics

Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU)

Memory

Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots)

AMT

Supports Intel vPro/ AMT 16.0

TPM

Supports dTPM 2.0

Ethernet

5x 2.5G Ethernet by I226-IT/ I225-IT and 1x Gigabit Ethernet by I219-LM with screw-lock

PoE+

Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6. 100W total power budget

USB 3.2

1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock
4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors
2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors

USB 2.0

2x USB 2.0 ports

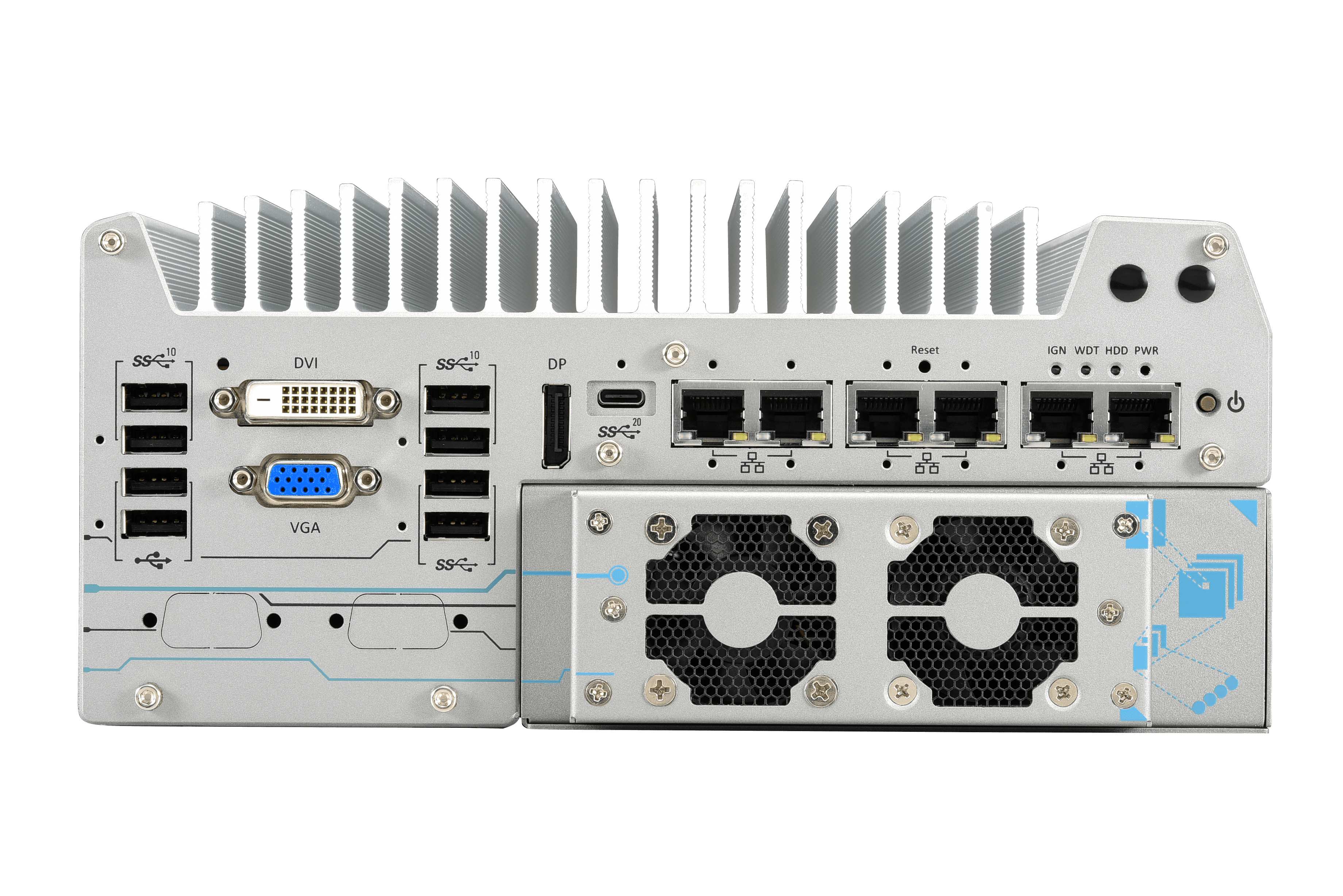

Video Port (Integrated Graphics)

1x VGA connector, supporting 1920 x 1200 resolution
1x DVI-D connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2304 resolution

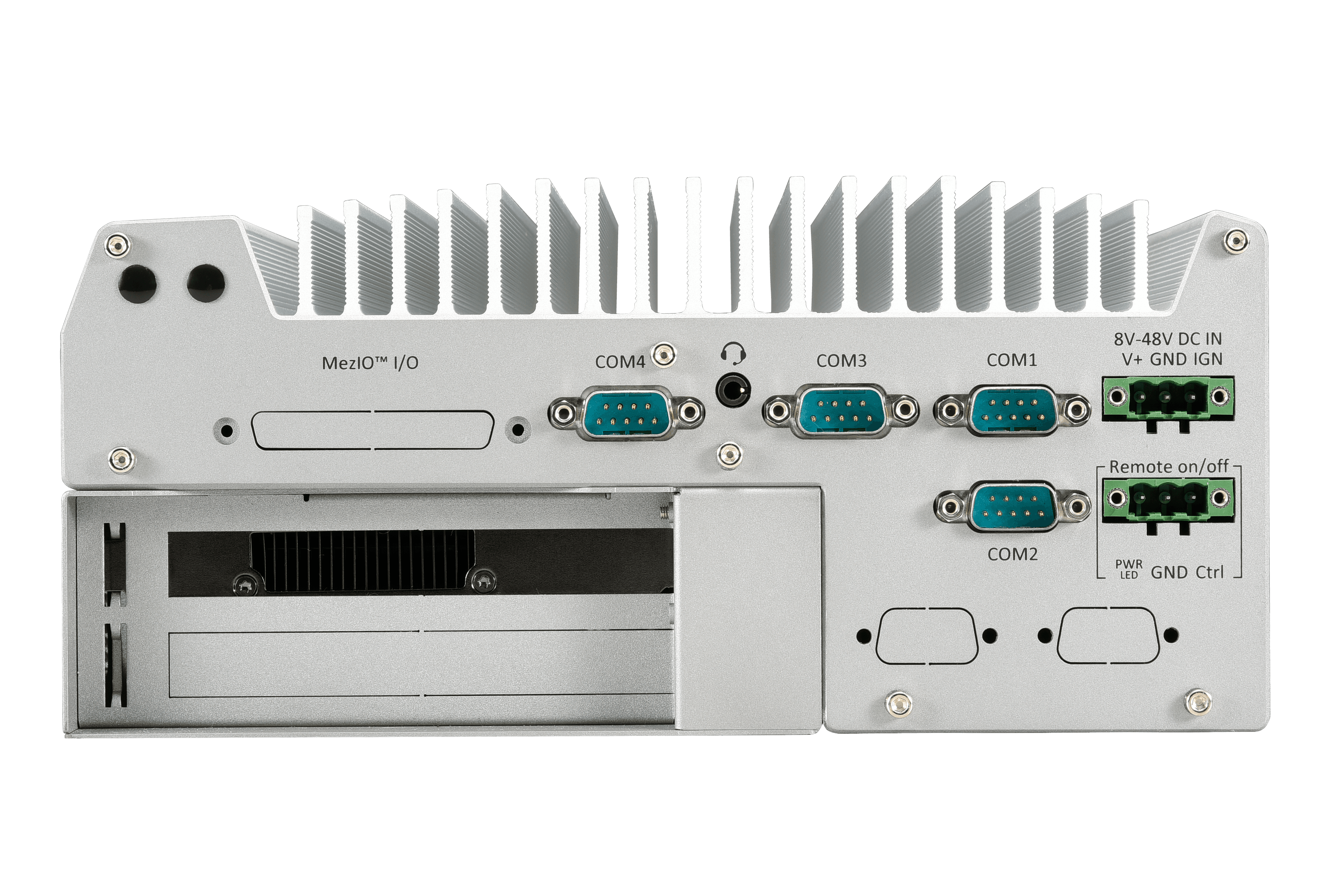

Serial Port

2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2)
2x RS-232 ports (COM3/COM4)

Audio

1x 3.5 mm jack for mic-in and speaker-out

SATA HDD

2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1

M.2

1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD

PCI Express

2x PCIe x16 slot@Gen3, 8-lanes PCIe signal in Cassette for installing NVIDIA® L4 GPU and one additional PCIe card

Mini PCI Express

1x full-size mini PCI Express socket

M.2

1x M.2 3042/3052 B key socket with SIM slot for M.2 4G/ 5G module

Expandable I/O

1x MezIO™ expansion port for Neousys MezIO® modules

DC Input

1x 3-pin pluggable terminal block for 8 to 48V DC input[1]
1x 3-pin pluggable terminal block for 24V DC input (UL series)

Remote Ctrl. & LED Output

1x 3-pin pluggable terminal block for remote control and PWR LED output

Dimension

240 mm (W) x 225 mm (D) x 110.5 mm (H)

Weight

4.0kg

Mounting

Wall-mount (standard) or damping bracket (optional)

Operating Temperature

With 35W CPU and NVIDIA® L4 GPU -25°C to 60°C[3][4]
With 65W CPU and NVIDIA® L4 GPU -25°C to 60°C[3][4] (configured as 35W TDP)
-25°C to 50°C[3][4] (configured as 65W TDP)

Storage Temperature

-40°C to 85°C

Humidity

10% to 90%, non-condensing

Vibration

MIL-STD-810H, Method 514.8, Category 4 (with optional damping bracket)

Shock

MIL-STD-810H, Method 516.8, Procedure I (with optional damping bracket)

EMC

CE/FCC Class A, according to EN 55032 & EN 55035

Safety

UL 62368-1, IEC 62368-1 (UL series only)
