24" Fanless Intel Core Processors Powerful Medical All In One PC

Onyx Healthcare

24" Fanless Intel Core Processors Powerful Medical All In One PC

Name: Micromax Pty Ltd
Address: 5 Orangegrove Avenue, Unanderra, NSW, 2526, AU
Telephone: 1300 760 699

Model: MATE2-2415Medical Computing

Key Features

Intel® Core™ 7,5,3, Processors (code name: Bartlett Lake-S)
Supports Dual Channel DDR5 5600 SODIMM up to 64GB
24" Full HD Wide Viewing Angle LCD
Capacitive Multi-Touch Screen with AG coating
Two Gigabit Ethernet
High Speed USB 3.2 Gen2 Ports
RS-232 x 2
8MP Camera with Mic (optional)
PCI Express [x4] / [x1] x1 (optional)
Imprivata RFID Reader (optional)
Reading Light
25W Backup Battery Support (Optional)

MAIN SPECIFICATIONS
Processor	Intel® Core™ 7 Processor 251TE 24 Cores 5.4GHz Intel® Core™ 5 Processor 221TE 14 Cores 5.0GHz Intel® Core™ 3 Processor 201TE 4 Cores 4.6GHz
System Memory	Supports Dual Channel DDR5 5600 SODIMM up to 64GB
Expansion Interface	PCI Express[x4]/[x1] x1 (optional)
OS Support	Windows® 10 Windows® 11 Linux®
Storage Disk Drive	M.2 2280 SATA SSD x 1 2.5" SATA Hard Disk Drive/SSD x 1 (optional)
Security	Trusted Platform Module 2.0 Imprivata RFID Reader (optional)
Wireless Communication	802.11 ac/a/b/g/n(optional) 802.11 ax (optional) Bluetooth 5 (optional)
Speaker	2W x 2
Function Key	LCD Brightness Up/Down Touch Screen On/Off Reading Light On/Off
Power Requirement	AC 100~240V / DC 12V
DISPLAY
Size	24" LCD
Resolution	1920 x 1080
Luminance	250 nits
View Angle	178˚(H)/178˚(V)
Contrast Ratio	3000:1
Back Light Life Time	30,000 Hours
Touch Screen	Capacitive Multi-Touch Screen with AG coating

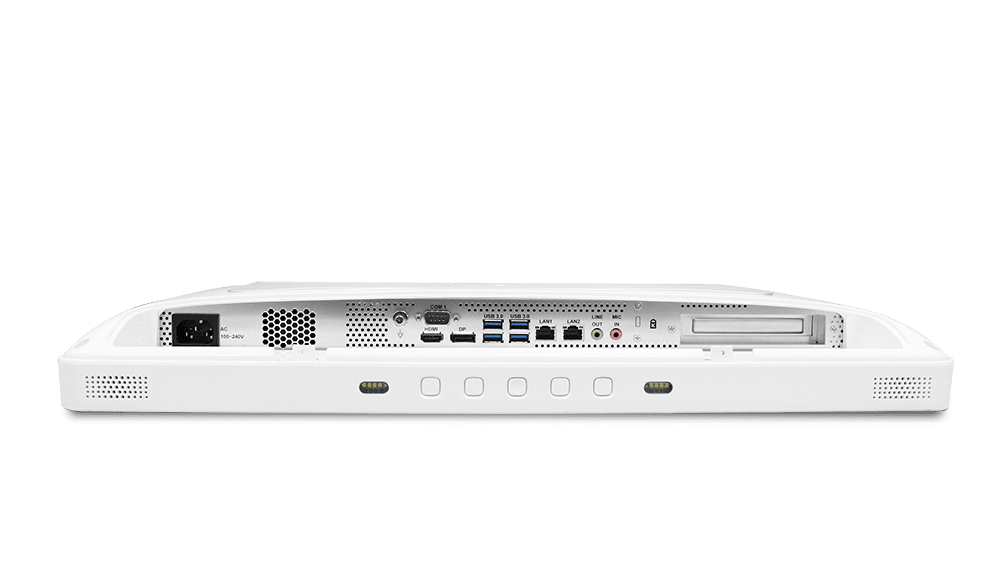

I/O
USB	USB 3.2 Gen 2 x 2 USB 3.2 Gen1 x2
Serial Port	RS-232 x 2 or No RS232 for Battery version
Ethernet	1.5KV Isolated Gigabit LAN x 2
Video Out	HDMI 2.0 x 2 (Supports resolution up to 3840 x 2160)
Audio	Mic-in, Line-out
MECHANICAL AND ENVIRONMENTAL
Operating Temperature	0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C(-4°F ~ 140°F)
Mounting VESA	75/100 mm
Degree of Protection	IP65 in the front ; IP54 in the back
Dimension	586 x 381 x 67mm
Package Size	755 x 195 x 528mm
Gross Weight	14 kg (30.86 lb)
Net Weight	8.7 kg(19.2 lb)
Certifications	CE : EN 60601-1-2: 2015 + A1: 2021 ( V4.1) EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 UL : ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL : CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2) TELEC:JAPAN TELEC ENERGY STAR 9.0
