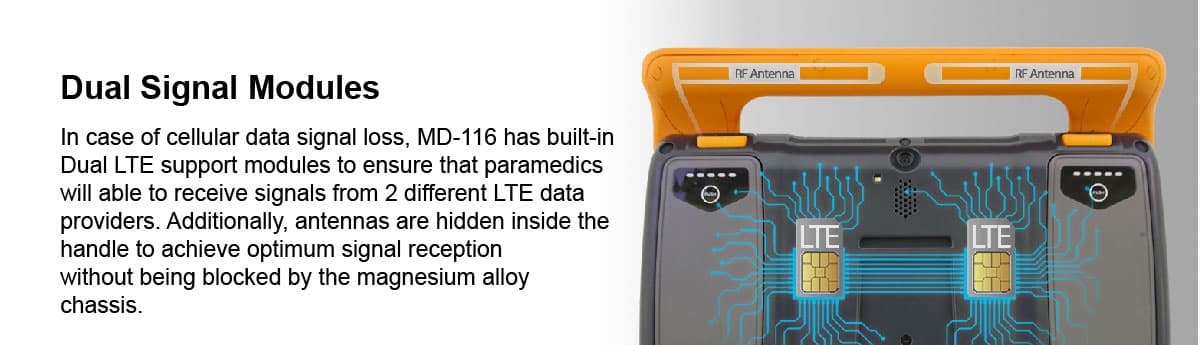

Tablet.i5-7300U.11.6.FHD.600nits.C-TS(G).F/R-Camera.SCR.RFID.WiFi/BT.Battery(x2)/ dual LTE SIM/ 8GB RAM/ 128GB M.2/ Windows 10 IoT/ 2 years warranty
Model: MD116I-P73-XX-XXX2Medical Computing
Key Features
MD116 Feature s

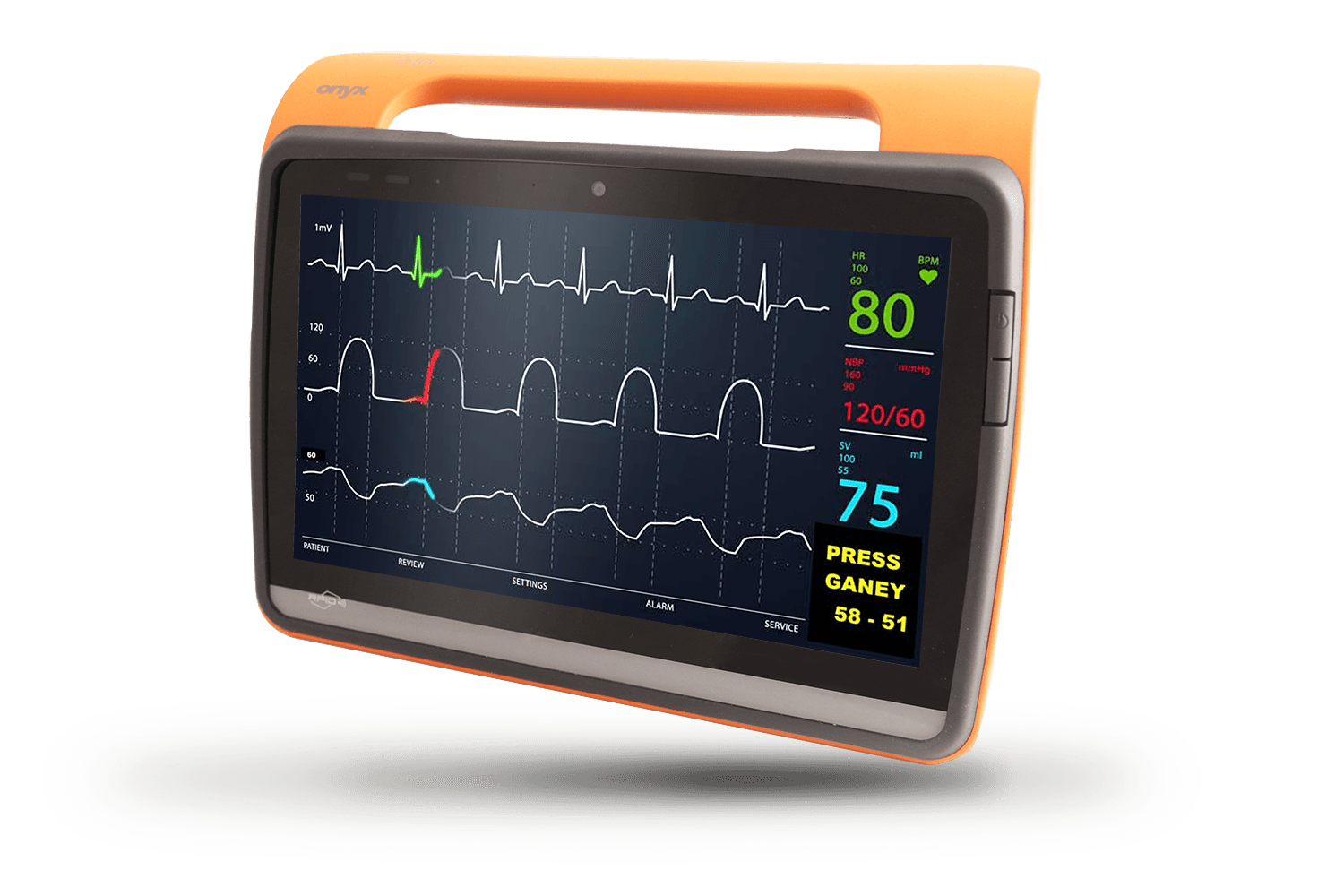

12”Fanless Intel ATOM / i5 Medical Tablet
Intel® Apollo Lake processor / Kaby lake U processor

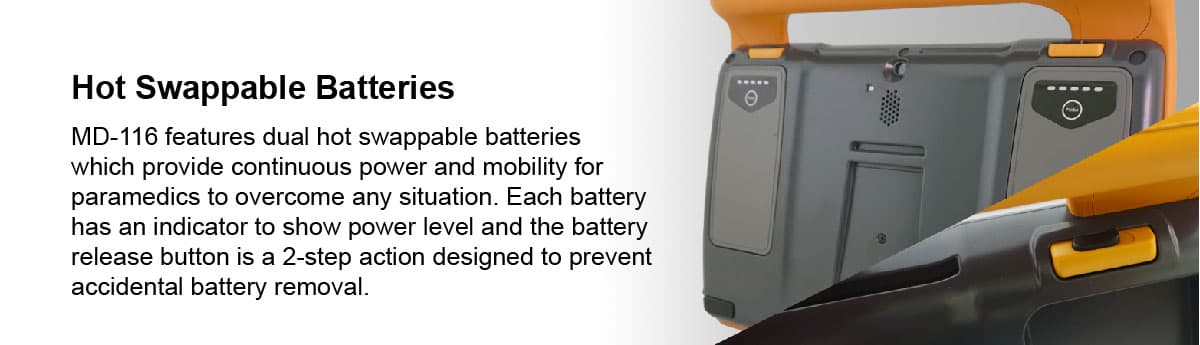

Dual hot - swappable batteries for 24/7 operation

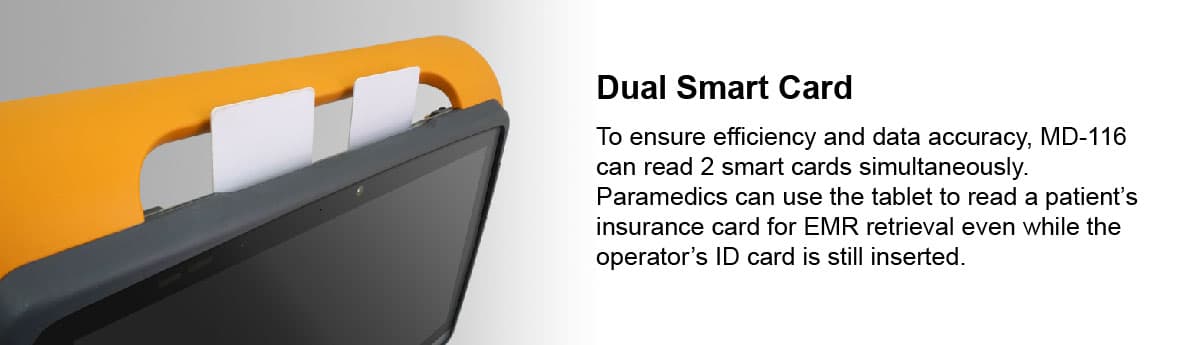

Dual smart card readers for multiple - care workflow
Standard USB Type - A and RJ45 for easy connection to medical devices

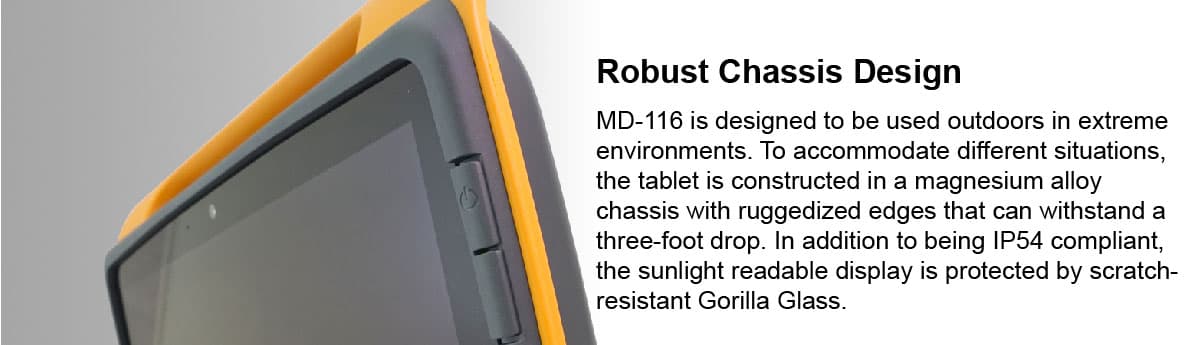

IP54 certified & 3 feet drop resistant
ORION client compatible

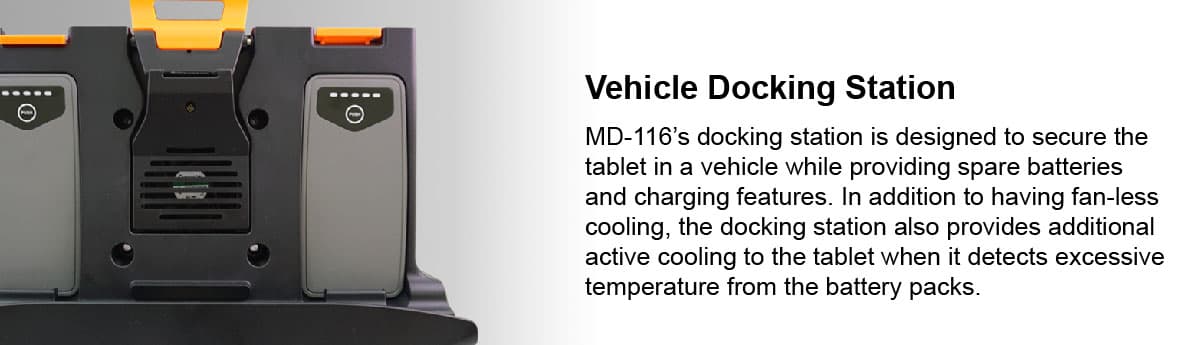

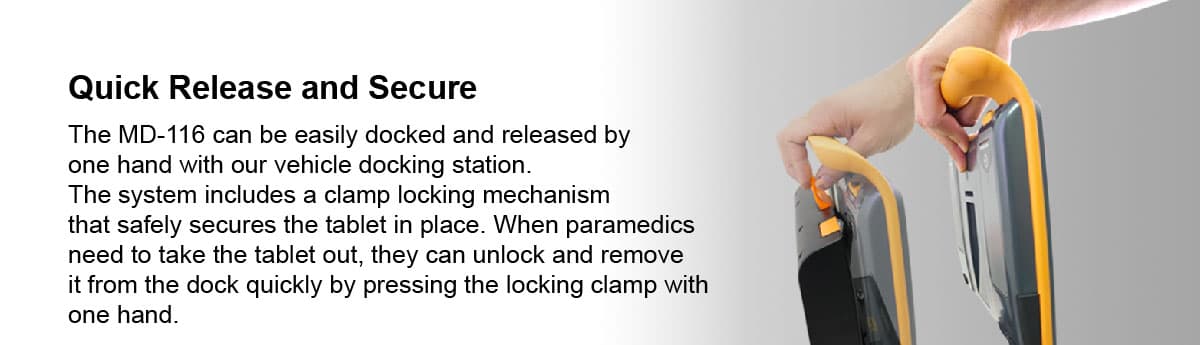

Instant vehicle docking system
Automotive Directive and EN1789 compliance for ambulances/medical transportation vehicles
1
www.onyx-healthcare.com 2023 63 64 ※ All product specifications are subject to change without notice Specifications Optional Accessories Specifications Vehicle Dock OPM-T016-A3 Office Dock OPM-T022-A1 Description Vehicle Dock Input Power 12V Installations VESA 75 IO 2x USB 2.0 Type-A 1x RJ45 1x Line Out 1x Phoenix Port 1x DC In Jack LED Indicator N/A Dimensions 236.89 x 293.03 x 88.22mm Weight 800g Operating Temperature 0°C ~ 40°C(32°F ~ 104°F) Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F) Part Number OPM-T022-A1 Description Office Dock Input Power 12V Installations Stationary IO 2x USB 2.0 Type-A 1x RJ45 1x RS-232 1x DC-In Video out (optional) 1x HDMI , 1x DP LED Indicator Steady Green: Connection LED Off: Disconnection Dimensions 354 x 117 x 78.2mm Weight 1060g Operating Temperature 0°C ~ 35°C(32°F ~ 95°F) Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F) Mobile Medical Tablet MD116 Accessory Selection
OPM-T016-A3 MD116 Vehicle Docking Plus . USB x2 /LAN / Line out
OPM-T022-A1 MD116 Office Dock
OPM-T022-A2 MD116 office Dock HDMI
OPM-T022-A3 MD116 office Dock DP Optional Accessories www.onyx-healthcare.com 2023 63 64 ※ All product specifications are subject to change without notice ※ All product specifications are subject to change without notice www.onyx-healthcare.com 2023 VESA Cradle OPM-T021-A1 Specifications Description VESA Cradle Input Power N/A Installations VESA 75 IO N/A LED Indicator N/A Dimensions 206.69 x 196.64 x 87.8mm Weight 395g Operating Temperature 0°C ~ 40°C(32°F ~ 104°F) Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F) Mobile Medical Tablet MD116 Accessory Selection
OPM-T021-A1 MD116 VESA Cradle Optional Accessories www.onyx-healthcare.com 2023 65 66 ※ All product specifications are subject to change without notice Mobile Medical Tablet MD116 Accessory Selection Specifications Battery Charger UP-M62 Specifications Battery Pack x2 OPM-P05T Description Battery Charger Input Power 24V Installations Stationary IO 1x Micro USB (Client) 1x DC-In LED Indicator Flickering Blue: Battery Charging Steady Blue: Battery Fully Charged Flickering Purple Green: Error Dimensions 245.95 x 124.64 x 143.65mm Weight 860g Operating Temperature 0°C ~ 35°C(32°F ~ 95°F) Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)
UP-M62-A1-1010 MD116 6-slots Charger
OPM-P05T-A2 2 Battery Kits.2S3P.7.2V.Onyx MD116.Volume Package Optional Accessories Ordering Information Battery Type 253P / 6 Cell Lithium-ion battery Battery Voltage 7.2V Battery Capacity 4545 mAh / 32.72Wh Warranty 1 year Certification UL,CE,IEC-60950-1,IEC-62133-1 Mechanical and Environmental Color Black Dimension 127(L) x 60(w) x 21(H) mm Net Packing Size 199(L) x 175(w) x 42(H) mm Weight 305g/pcs Gross Weight 0.9kg(1.98 lbs) Operating Temperature 0°C ~ 40°C(32°F ~ 104°F) Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F) www.onyx-healthcare.com 2023 65 66 ※ All product specifications are subject to change without notice ※ All product specifications are subject to change without notice www.onyx-healthcare.com 2023 Specifications Optional Accessories Desk Stand OPM-H26S Description Desk Stand Color Black Installations MD116 / MD116i Screw hole IO N/A Dimensions 250x 153 x 126.2 mm Weight 500g Minimum Package Size 610 x 240 x 330 mm (Incl.5pcs) Minimum Package Weight 3 kg (Incl.5pcs) Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F) Mobile Medical Tablet MD116 Accessory Selection
