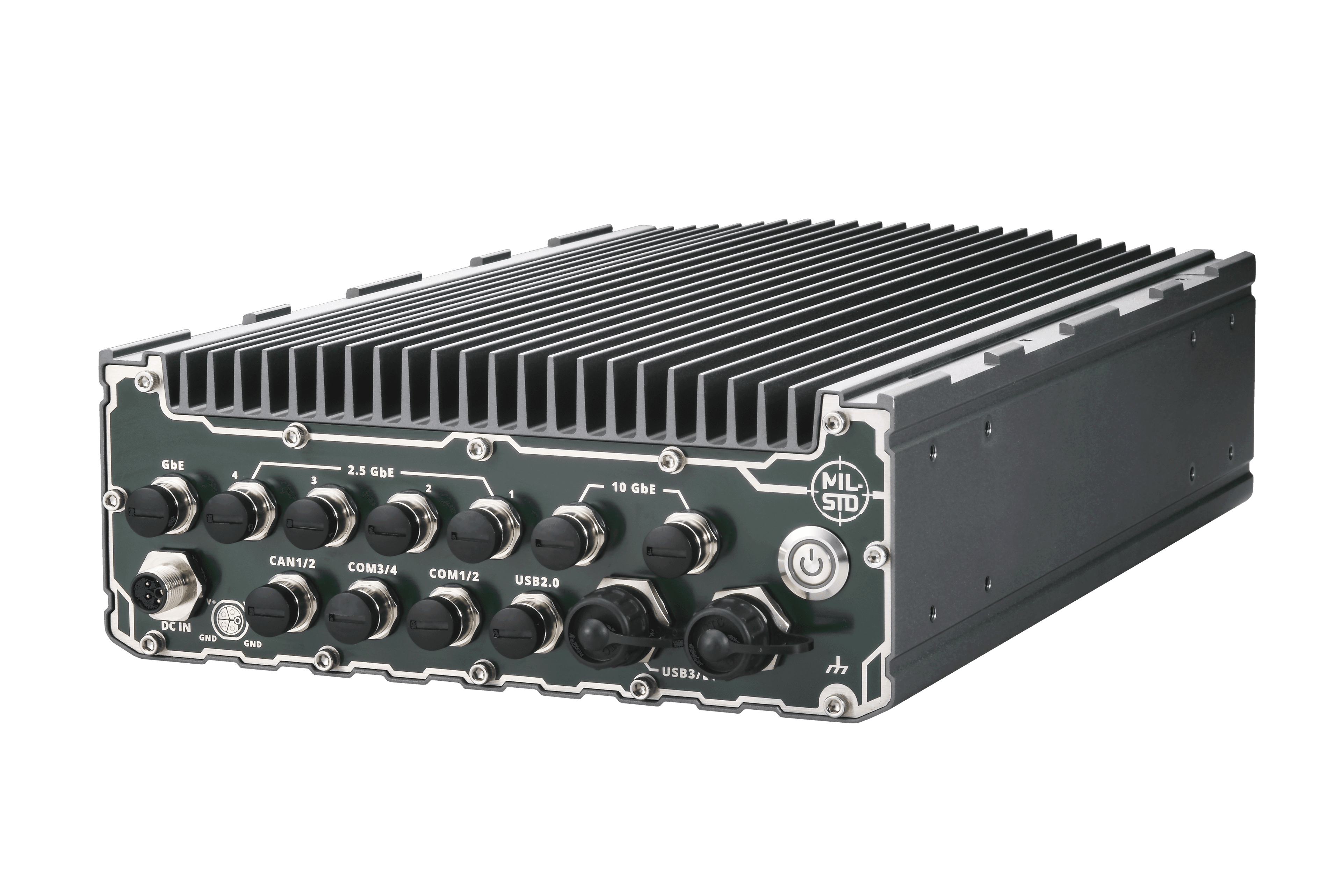

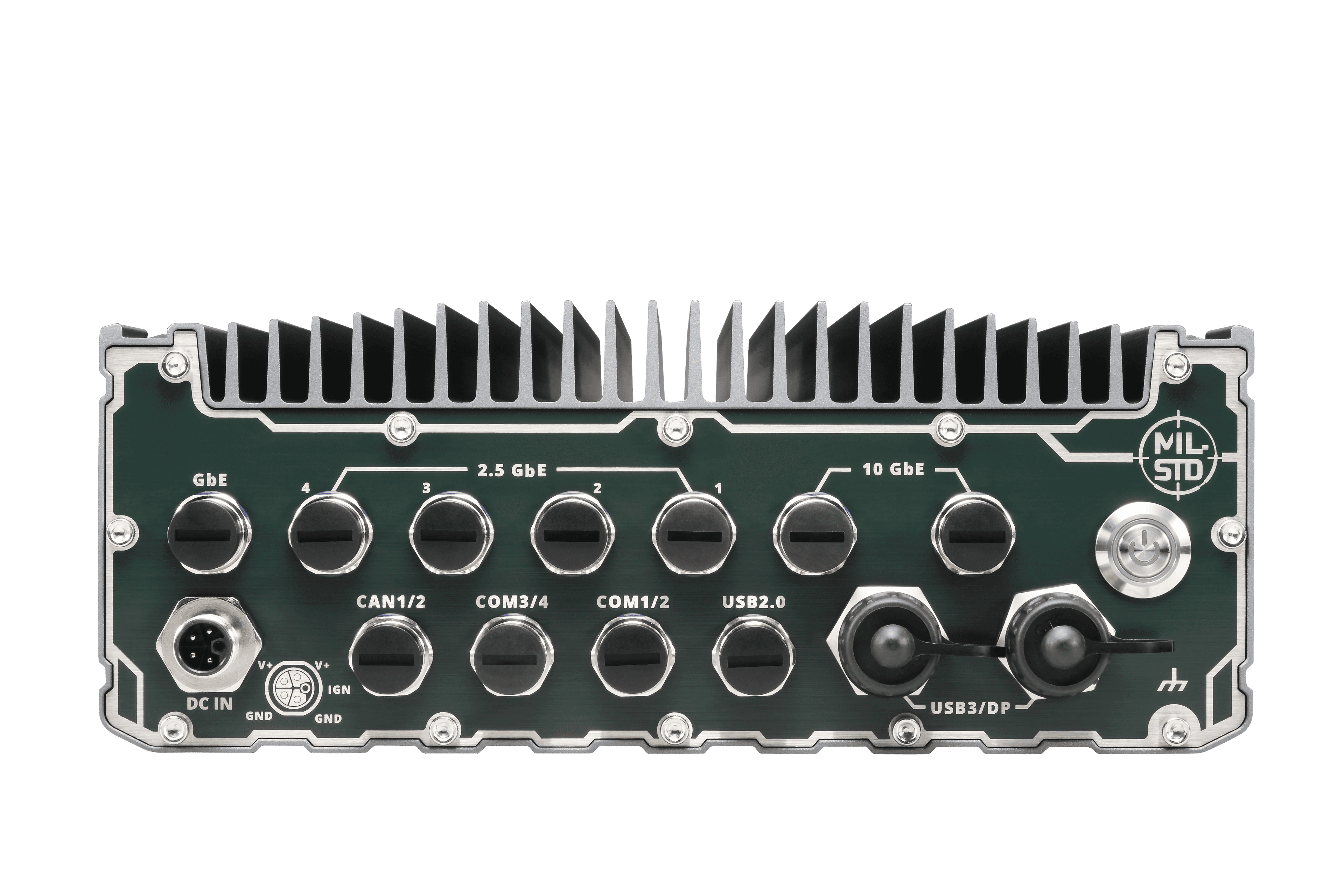

2U 19"/2 rack mount IP69K mission-critical computer supporting Intel® 14th/ 13th/ 12th-Gen Core™ processor

Neousys Technology

2U 19"/2 rack mount IP69K mission-critical computer supporting Intel® 14th/ 13th/ 12th-Gen Core™ processor

Name: Micromax Pty Ltd
Address: 5 Orangegrove Avenue, Unanderra, NSW, 2526, AU
Telephone: 1300 760 699

Model: SEMIL-2200Industrial Computing

Key Features

2U IP69K mission critical computer
Up to 128 GB ECC/ non-ECC DDR5 4800 SDRAM
-40°C to 70°C wide-temperature fanless operation
2x 10GbE, 4x 2.5GbE, 1x GbE via M12 X-coded connectors
2x SocketCAN and 2x USB3.2 Gen1 Type-C w/ DP alternative mode
9V to 36V wide-range DC input with built-in ignition power control
MIL-STD-810H, MIL-STD-461G, MIL-STD-1275D compliant

System Core
Processor	Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 35W TDP) - Intel® Core™ i9-14900T - Intel® Core™ i7-14700T - Intel® Core™ i5-14500T - Intel® Core™ i3-14100T Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 35W TDP) - Intel® Core™ i9-13900TE - Intel® Core™ i7-13700TE - Intel® Core™ i5-13500TE - Intel® Core™ i3-13100TE Supporting Intel® 12th-Gen Core™ CPU (LGA1700 socket, 35W TDP) - Intel® Core™ i9-12900TE - Intel® Core™ i7-12700TE - Intel® Core™ i5-12500TE - Intel® Core™ i3-12100TE
Chipset	Intel® R680E platform controller hub
Graphics	Integrated Intel® UHD Graphics 770 (32EU)
Memory	Up to 128 GB ECC/ non-ECC DDR5 4800 SDRAM (two SODIMM slots)
AMT	Supports Intel vPro/ AMT 16.0
TPM	Supports dTPM 2.0
I/O Interface
Ethernet Port	2x 10GbE Ethernet by X550-AT2 (with WoL) (M12 X-coded) 4x 2.5GbE Ethernet by Intel I226-IT (M12 X-coded) 1x GbE Ethernet by Intel I219-LM (with WoL) (M12 X-coded)
CAN Bus	2x isolated CAN 2.0 port, supporting SocketCAN in Linux
USB	2x Type-C USB 3.2 Gen1x1 (5Gbps) ports (shared DisplayPort) 2x USB 2.0 ports (M12 A-coded)
Video Port	2x Type-C USB connector supporting DP output (shared USB3.2 Gen1x1)
Serial Port	2x isolated 3-wire RS-232 ports (COM1/ COM2) 1x isolated 3-wire RS232 (COM3) & 1x RS-422/ 485 port (COM4)
Storage Interface
SATA HDD	2x Internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1
M.2	1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD
Expansion Bus
Mini PCI-E	3x full-size mini PCI Express socket with SIM slot
M.2	1x M.2 2242/3052 B key socket with dual SIM slot for M.2 5G/ 4G module 1x M.2 2230 E key socket for Wi-Fi
Power Supply
DC Input	9V to 36V DC input with reverse polarity protection (M12 L-coded)
Ignition Control	Built-in ignition power control (IGN/ GND signal via M12 L-coded connector)
Mechanical
Dimension	220mm (W) x 310mm (D) x 90.5mm (H) (excl. rack-mount bracket)
Weight	6.2 kg
Mounting	Rack-mounting (standard) and wall-mounting (standard)
Environmental
Operating Temperature	-40°C to 70°C
Storage Temperature	-40°C ~85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810H: 514.8C-VII. Category 4
Shock	MIL-STD-810H: 516.8 Procedure I
EMC	MIL-STD-461G: - CE102 (10kHz~10MHz) - RE102 (2MHz~18GHz) - RS103 (2MHz~18GHz, 50V/m)
Electrical Systems	MIL-STD-1275D: Normal operating mode (ripples, surges, spikes)
IP Rating	IP69K
