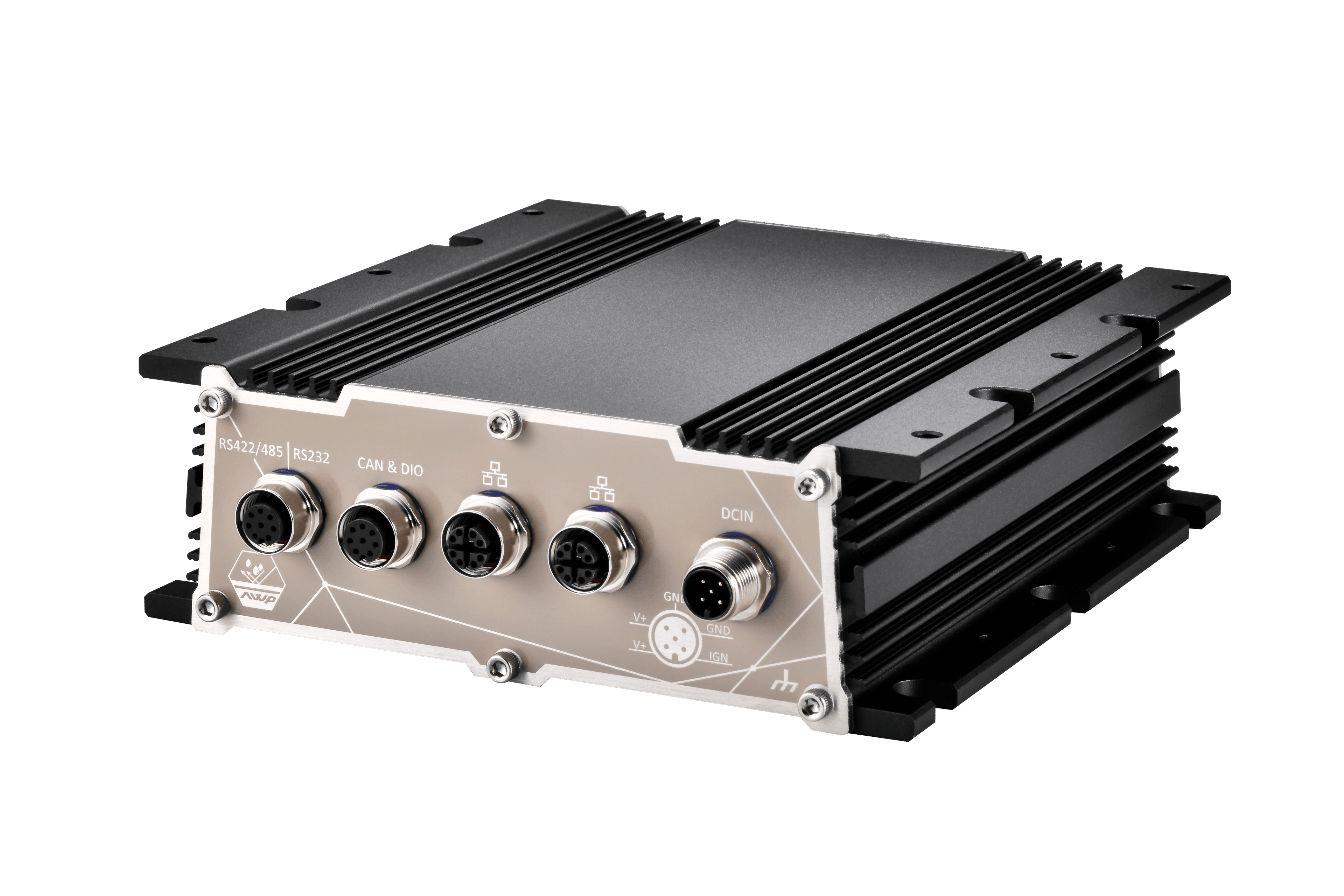

IP67 Waterproof Computer with Intel® Core™ i3-N305, 2x 2.5GbE and isolated COM ports

Name: Micromax Pty Ltd
Address: 5 Orangegrove Avenue, Unanderra, NSW, 2526, AU
Telephone: 1300 760 699

Model: POC-766AWPMobile Computing

Key Features

System Core
Processor	Intel® Alder Lake Core™ i3-N305 processor (8C/8T, 1.8/3.8 GHz, 15W TDP)
Graphics	Integrated Intel® UHD Graphics with 32EUs
Memory	1x DDR5-4800 SDRAM up to 16 GB (one SODIMM socket)
TPM	Supports dTPM 2.0
Front I/O Interface
Ethernet	2x 2.5Gb Ethernet ports by Intel® I226-IT via M12 X-coded, 8-pin connector
Serial Port	1x isolated RS-232 port (COM1) and 1x isolated RS-422/485 ports (COM2) via M12 A-coded, 8-pin
CAN Bus & DIO	1 x isolated CAN2.0B and 1-CH isolated DI and 2-CH isolated DO via M12 A-coded, 8-pin

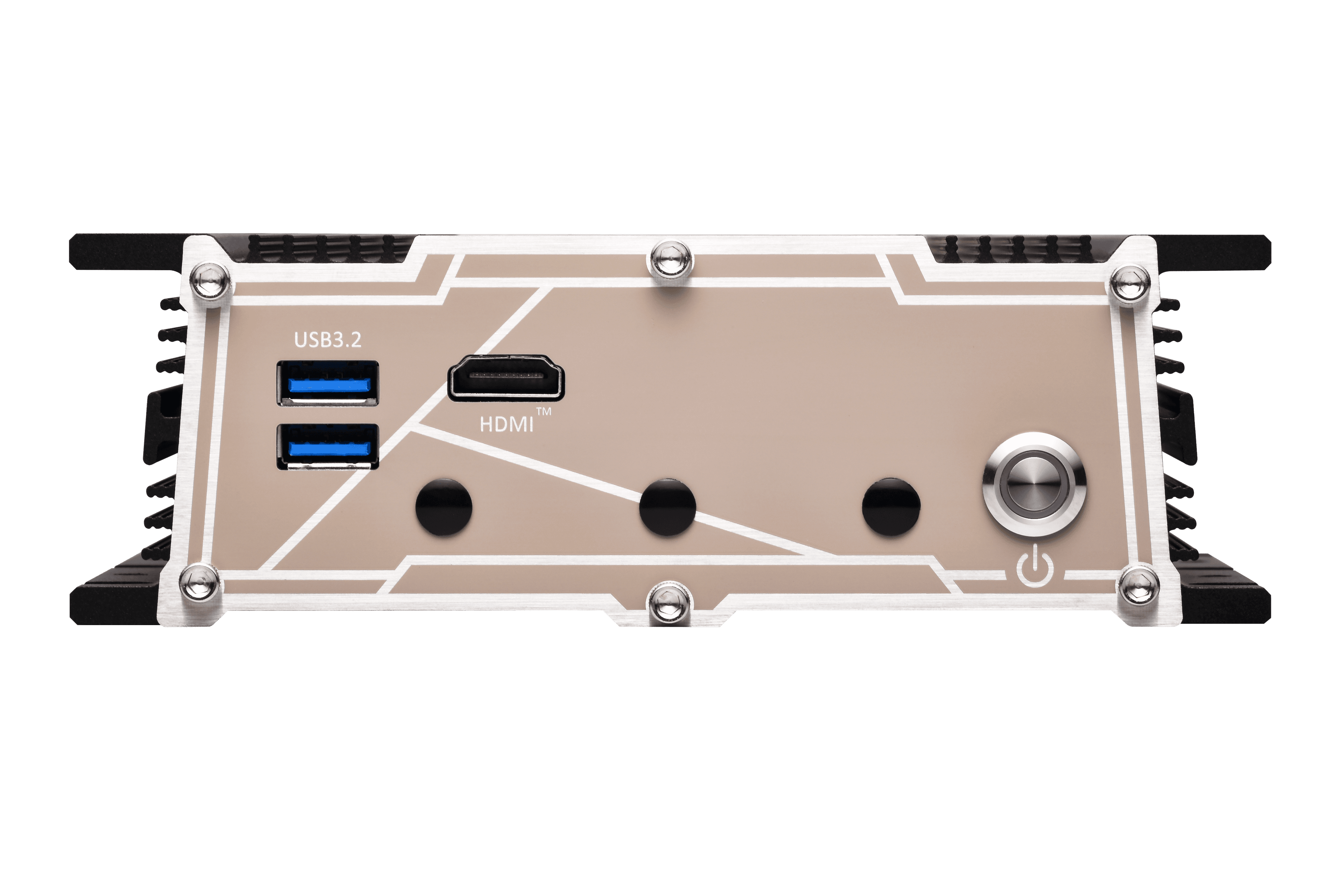

Rear I/O Interface
USB	2x USB 3.2 Gen2 x1 ports in type-A connectors
Video Port	1x HDMI1.4b, Supporting 3840 x 2160 30Hz
Storage Interface
M.2	1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD (supports SATA signal)
Internal Expansion Bus
Mini-PCIe	1x full-size mini PCI Express socket with internal micro SIM socket
Power Supply
DC Input	8~35V DC input with ignition power control input via M12 A-coded, 5-pin connector
Mechanical
Dimension	161.5 mm (W) x 169 mm (D) x 52.7 mm (H)
Weight	1.8 kg
Mounting	Wall-mount or DIN-rail mount (Optional)
Environmental
Operating Temperature	-25°C ~ 70°C
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I
EMC	CE/FCC Class A, according to EN 55032 & EN 55035
Safety	UL 62368-1, IEC 62368-1
Ingress Protection	IP67
