| System Core | |
|---|---|
| Processor | Supporting NVIDIA® Jetson AGX Orin™ System-on-Module (SOM), comprising NVIDIA® Ampere GPU and Arm Cortex-A78AE CPU |
| Memory | 32GB/ 64GB LPDDR5 (AGX Orin 32GB/ 64GB) @ 3200 MHz on SOM |
| eMMC | 64GB eMMC 5.1 on SOM |
| Panel I/O Interface | |

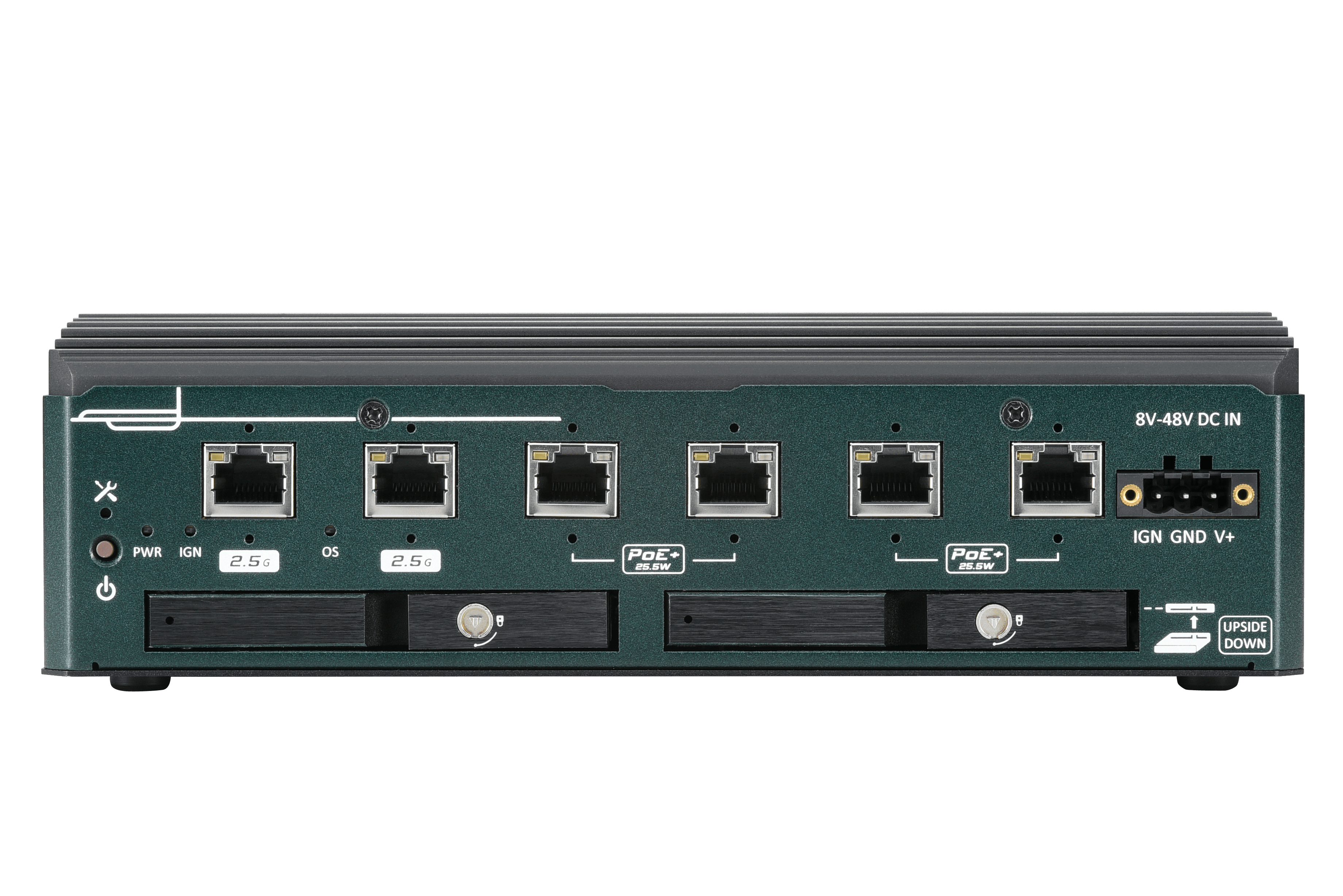

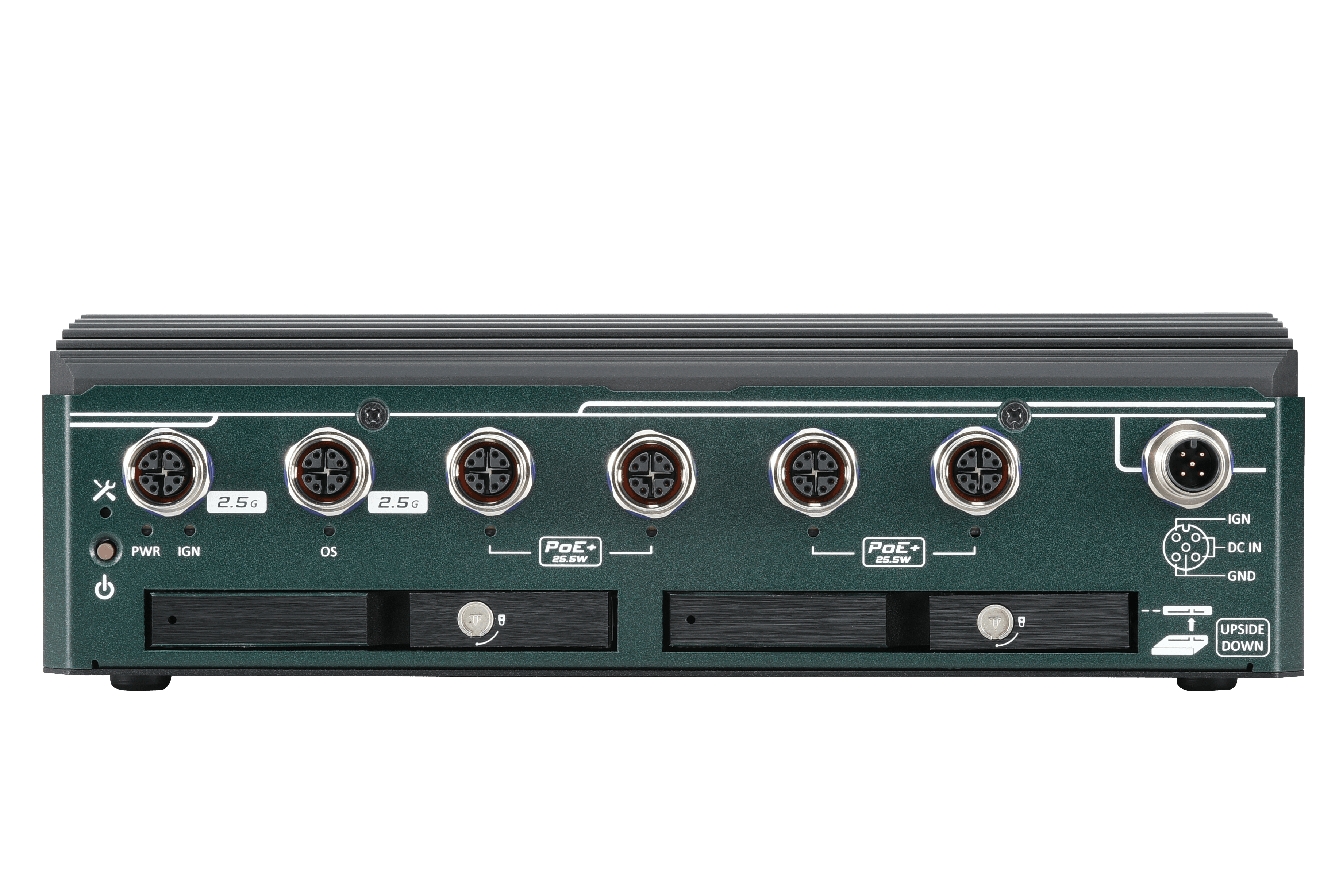

| Ethernet Port | 6x RJ45 with screw-lock 6x M12 X-coded 8-pin Port 1, Port 2: 2.5 Gigabit Ethernet ports by Intel® I226-IT/ I225-IT Port 3 ~ Port 6: Gigabit ports, share 1 Gbps total bandwidth |
| PoE Capability | IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6, 100W total power budget |
| USB | 1x USB 3.2 Gen2 port 2x USB 2.0 ports 1x USB Type C (Debug Only) |
| Video Port | 1x DisplayPort, supporting 3840x2160 at 60Hz |
| Serial Port | 1x Isolated RS-485 port and 2x RS-232 ports |
| CAN bus | 2x CAN 2.0 ports |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Internal I/O Interface | |
| Mini PCI Express | 1x full-size mini PCI Express socket (PCIe + USB 2.0) for WiFi 6 or CAN 1x full-size mini PCI Express socket (USB 2.0) for GNSS or 4G LTE |
| M.2 | 1x M.2 3042/3052 B key (USB 3.1 Gen 1 + USB 2.0) for LTE/5G module with dual micro SIM support |
| Storage | |
| SATA HDD | 2x front-accessible 2.5” 7mm SSD |
| M.2 NVMe | 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD |
| Power Supply | |
| DC Input | 1x 3-pin pluggable terminal block for 8V to 48V DC input and ignition power control (IGN/ GND/ V+) 1x M12 A-coded 5-pin for 8V to 48V DC input and ignition power control (IGN/ GND/ V+)* |
| Mechanical | |
| System LED | PWR: System carrier board power status OS: Jetson OS boot status IGN: Ignition power signal |
| Dimension | 230 mm (W) x 173 mm (D) x 66 mm (H) |
| Weight | 2.6 kg (excluding the damping bracket) |
| Mounting | Wall-mount with the damping bracket |
| Environmental | |
| Operating Temperature | -25°C ~ 70°C with passive cooling (30W TDP mode on JAO32/ JAO64) ** -40°C ~ 75°C with passive cooling (35W TDP mode on JAOi) ** |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90%, non-condensing |
| Vibration | Operating, MIL-STD-810H, Method 514.8, Category 4 IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) |
| Shock | Operating, MIL-STD-810H, Method 516.8, Procedure I IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) |
| EMC | CE/ FCC Class A, according to EN 55032 & EN 55035 EN 50121-3 (EN 50155:2017, Clause 13.4.8) CE/ FCC Class A, according to EN 55032 & EN 55035 EN 50121-3 (EN 50155:2017, Clause 13.4.8) |
* Due to the M12 DC input current limit, the allowable DC input range of the NRU-222S varies based on the system load: System load under 60W, the required DC input range is 8V to 48V System load between 60W to 160W, the required DC input range is 20V to 48V
** For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
